How laundry pods are manufactured: From formula to packaging

Step inside the advanced production line at THT Vietnam Manufacturing. Discover the precision engineering behind How Laundry Pods Are Manufactured-from ultra-concentrated formula blending and water-soluble PVA film technology to automated packaging.

1. The engineering marvel behind the modern pod

To the average consumer, a laundry pod appears deceptively simple: a colorful, jelly-like pouch that dissolves magically in the washing machine, releasing a powerful burst of cleaning agents. It requires no measuring cups, creates no spills, and takes up minimal storage space.

However, behind that simple exterior lies one of the most complex engineering feats in the modern chemical industry. Manufacturing laundry pods requires a delicate balance of advanced formulation chemistry, specialized moisture-sensitive film technology, and high-speed automated packaging systems. At THT Vietnam Manufacturing, we have mastered this intricate discipline. Operating from our advanced facility in Hưng Yên, we combine cutting-edge technology with strict quality control to produce world-class pod solutions for brands across the globe.

In this comprehensive guide, we pull back the curtain to explore How Laundry Pods Are Manufactured, detailing the exact steps required to transform raw chemicals into a shelf-ready consumer favorite.

2. Step 1: The chemistry of ultra-concentration

The foundation of any great laundry pod begins in the R&D laboratory. Unlike traditional liquid laundry detergents, which typically contain 70% to 80% water, laundry pods must be ultra-concentrated.

The Water Activity Challenge

Water is the primary enemy of a laundry pod. Because the outer shell is made of a water-soluble material, any excess water inside the formula will cause the pod to dissolve prematurely from the inside out.

• Low-Water Formulation: Our chemists at THT Vietnam formulate specialized, low-water active blends. We pack maximum cleaning power-enzymes, brighteners, and surfactants-into a tiny droplet volume.

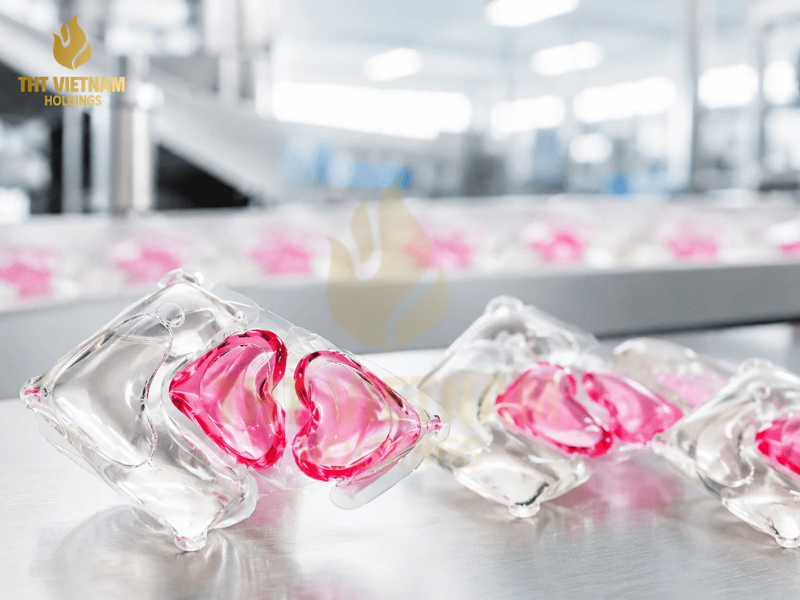

• Multi-Compartment Physics: For advanced formulations that require separating incompatible ingredients (such as enzymes and active oxygen brighteners) until the moment of the wash, we design multi-chamber pods. This requires simultaneous, synchronized liquid dosing into separate pockets of the pod film.

3. Step 2: Water-Soluble Film (PVA) technology

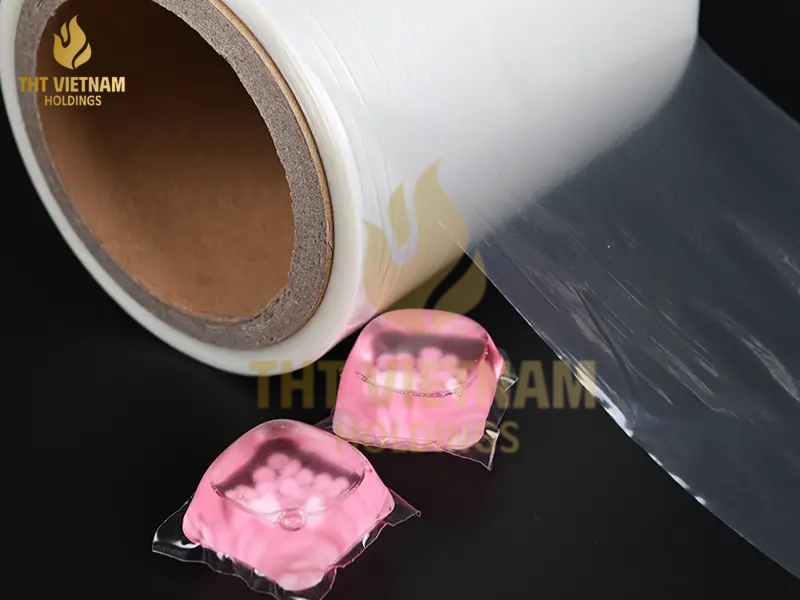

Once the formula is perfected, the next critical element is the outer casing. Laundry pods rely on Polyvinyl Alcohol (PVA) film. Selecting and handling this film is a masterclass in material science.

• Dissolution Profile: The PVA film must be tough enough to withstand mechanical stress during shipping and handling, yet sensitive enough to dissolve completely and rapidly in both hot and cold water, leaving zero residue on garments.
• Environmental Resistance: PVA is naturally sensitive to ambient humidity. If the manufacturing environment has too much moisture, the film becomes tacky and ruins the batch. If it is too dry, the film becomes brittle and cracks. Managing this delicate balance is where our manufacturing expertise comes into play.

4. Step 3: Precision high-speed thermoforming and filling

The actual production of the pod takes place on state-of-the-art, high-speed rotary packaging machines. This is where mechanical engineering meets chemical precision.

The Thermoforming Process

1. Film Feeding: The bottom layer of the PVA film is fed continuously into the thermoforming mold.
2. Heating and Shaping: Gentle heat is applied to soften the film, and vacuum pressure pulls it down into the mold cavities, creating small pockets or “cups.”
3. Liquid Dosing: Computerized, ultra-precise dispensers inject the exact measured dosage of the concentrated liquid detergent into each formed pocket. If a multi-chamber pod is being produced, secondary nozzles inject the second formula phase simultaneously.
4. Sealing: The top layer of the PVA film is laid over the filled pockets. A combination of precise thermal heat and moisture activation welds the top and bottom films together around the edges, creating an airtight, leak-proof seal.
5. Cutting: High-speed rotary cutters slice the continuous sheet of film into individual, perfectly formed pods.

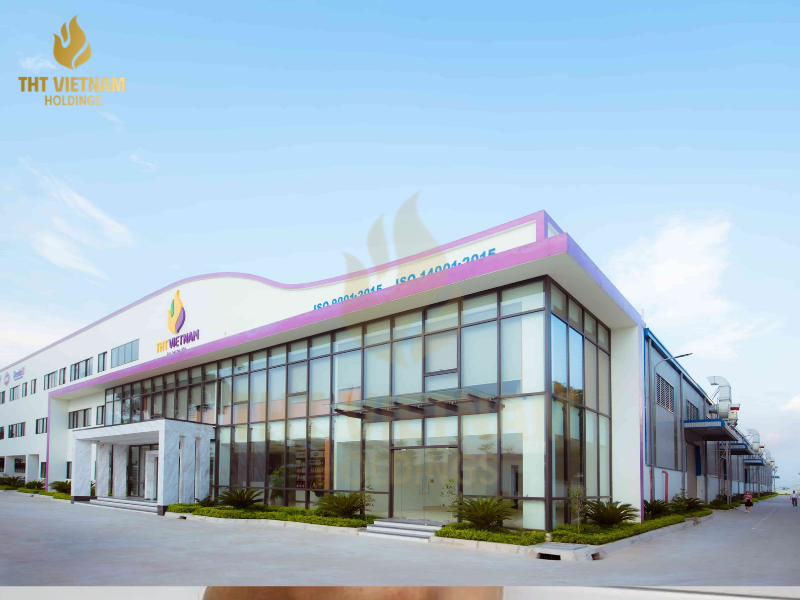

5. Step 4: Environmental control-The Hưng Yên advantage

Why do top brands trust THT Vietnam Manufacturing for their pod production? The answer lies in our environmental infrastructure.

Producing laundry pods cannot be done in a standard factory warehouse. It requires a strictly regulated micro-climate:

• Climate-Controlled Cleanrooms: Our production halls maintain continuous control over temperature and relative humidity (RH). This ensures the PVA film maintains optimal elasticity and structural integrity throughout the thermoforming and sealing process.
• Inline Vision Systems: High-definition optical cameras scan every single pod as it rolls off the line. Any pod with a micro-leak, trapped air bubble, or imperfect seal is instantly rejected by an automated pneumatic arm.

6. Step 5: Child-resistant and aesthetic packaging

A perfectly manufactured pod is only as good as its packaging. Because laundry pods are concentrated and colorful, packaging safety and compliance are paramount.

• Child-Reserstant Mechanisms: We package pods in specialized tubs, zipper pouches, or rigid containers equipped with certified child-lock closures, preventing accidental ingestion by toddlers while remaining easy for adults to open.
• Moisture Barriers: The final packaging must act as an absolute barrier against ambient humidity. If moisture penetrates the retail tub, the pods will fuse together into a solid block. We use high-barrier materials and induction seals to guarantee product shelf life.
• Brand Differentiation: Whether through matte-finish pouches or transparent tubs that showcase the vibrant colors of the multi-chamber pods, our packaging lines ensure your brand stands out on retail shelves.

7. Step 6: Rigorous Quality Gates (ISO Standards)

At THT Vietnam, quality is verified at every stage of production. As an ISO 9001:2015 and ISO 14001:2015 certified facility, our pod manufacturing adheres to strict quality gates:

• Seal Strength Testing: We test random samples under mechanical pressure to ensure the weld is stronger than the film itself.
• Dissolution Testing: Samples are regularly dropped into cold-water testing beakers to verify complete breakdown within seconds.
• Weight and Volume Audits: Automated check-weighers ensure every tub contains the exact count and weight specified.

8. Conclusion: Partnering for pod success

Understanding How Laundry Pods Are Manufactured reveals why this product category requires an elite manufacturing partner. The margin for error is razor-thin, demanding advanced machinery, chemical expertise, and strict environmental controls.

By leveraging the infrastructure at THT Vietnam Manufacturing in Hưng Yên, your brand can bypass the massive capital expenditure required for pod machinery and step straight into high-end, market-ready production. Whether you are launching a new eco-friendly pod line or expanding your existing home care portfolio, our turnkey OEM/ODM solutions ensure your product delivers absolute excellence from formula to packaging.
